RADIOGRAPHY

SOLUTIONS

PODIATRY

Through innovative design, Rayence offers a true flat panel detector, retrofit orthoposer base and an advanced imaging software solution to the podiatry market.

Our technology sets us apart from other manufacturers. We offer the highest quality diagnostic images at a low cost of ownership for today’s podiatrist.

The compact and lightweight 10x12 inch digital flat panel detector is well designed to satisfy the daily diagnostic needs of the most demanding user. Our PodView image acquisition software is designed specifically for podiatry and acquire images quickly.

Menu

DR Flat Panel Detectors

1012WCA

Acquisition Software

PODVIEW

Universal Radiography Systems

XCel



1012WCA

10x12 Wireless DR Flat Panel Detector

ERGONOMIC DESIGN WITH A REMOVABLE HANDLE

Thin, Lightweight, and robust, this wireless detector offers true portability and flexibility. It is an ideal versatile solution for a faster, more streamlined approach to direct, high-quality digital radiography. It incorporates Cesium Iodide scintillator technology which significantly reduces exposure when compared to CR plates or Gadox scintillator flat panel detectors.

The detector has a built-in Access Point (AP) which enables images to be sent directly to a Wi-Fi enabled PC or laptop in seconds. For added flexibility, 1012WCA can also be used as a tethered detector. With the configuration, the battery will recharge without it having to be removed and placed in to a separate charger.

Shock Resistant and Water Resistant
Wireless image transfer

Superior Image Quality
Built In Image Storage

Specifications

Detection Area
Sensor Type
Scintillator
Pixel Matrix
Pixel Pitch
A/D Conversion
Effective Pixel Matrix
Preview Time


Energy Range
Battery Operating Time
Weight
Dimensions

  10 x 12 in
  Amorphous Silicon with TFT
  Cesium lodide
 3268 x 3268
  127 ㎛
  14/16 bit
 2040 x 2520
 ≤ 2.0 Sec (Wired)
≤ 3.0 Sec (Wireless)
 40~150 kVp
  Approx. 3hrs
  6.94 lbs (3.15 kg)
  13.27 x 15.55 x 0.71 in

* Specifications subject to change without prior notice *



PODVIEW

Acquisition Software

SMART PODIATRY DIGITAL IMAGING SOLUTIONS

Designed with workflow and efficiency in mind, Xmaru PodView was developed specifically for podiatric practices as well as foot and ankle surgeons.

The Xmaru PodView provides advanced measure tools such as Inter-Metatarsal Angle and Hallux-Abductus Angle standard. It comes with standard features like DICOM Modality Work List (MWL), DICOM Printing, and DVD/CD Burning with viewer. We provide you the ability to export images as JPEG, TIF, GIF, and BITMAP.

DICOM File Management and Printing
Image Magnification
Image Stitching

CD recording with CD viewer
Measuring the Length and Angles of the Image
Adding Annotation Text, Graphics and Electronic Markers to an Image

Intuitive GUI and Smart Guide

Xmaru PODView provides a user friendly workflow environment offering DICOM-compliant, large data processing. With podiatry specific measurement tools and an easy-to-navigate GUI, PODView provides a complete solution.

Smart Guide tutorial provides a simple user teaching aid on how to use the measurement tools


Intuitive and direct graphic user interface with X-ray detector and generator


Optimized exposure conditions and image review


Reduce unnecessary rework

System Requirement

Monitor Resolution


CPU
Memory




Operation System

1,280 x 768 (Minimum) 1,680 x 1,050 1,920 x 1,080 (Optimized)
 Intel Core™ i5 or more
Intel GMA 950 or more Intel GMA X3500 or more Nvidia Geforce FX5200 or more 512MB or more (No Shared Memory)
Windows 7 (32bit/64bit) Professional or Home Edition Window 8 (32bit/64bit) Professional or Enterprise

* Specifications subject to change without prior notice *



XCel

DR Podiatry Solutions

Bi-Directional Orthoposer

Podiatry X-Ray System with HF Generator

The DRPOD715-WCA + Xmaru1012WCA is the true flat panel x-ray detector wireless solution for the podiatry market. The DRPOD715-WCA + Xmaru1012WC provide podiatrists a smart & cost effective way to upgrade their current x-ray systems to provide them with the many benefits of a DR workflow. In combination with industry leading technical specifications and our post processing algorithms, Rayence has established the benchmark for the quality solution today’s podiatrist have to come require.

Eliminate the need to rotate the patient for the DP view
Eliminate the need to rotate the arm for the AP view
Eliminate the need to readjust the collimator lateral views

Features the low voltage expose switch with optional remote key box
Include features that can meet ADA guidelines

Enable wheelchair patients to be easily accommodated without having to leave the wheelchair

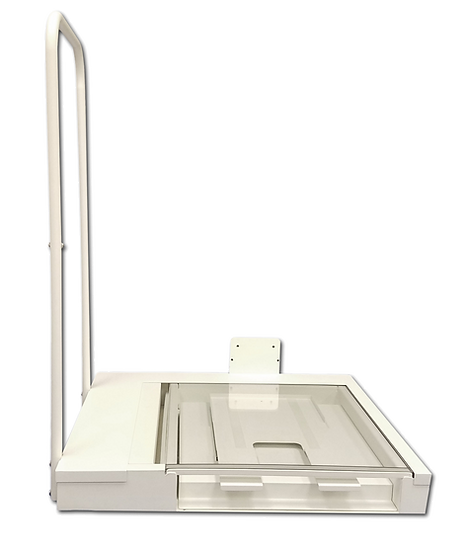

Single Directional Orthoposer

Specifications

Detection Area
Dimensions (WxLxD)
Active Area
Sensor Type
Scintillator
Weight
Active Pixel Number
Pixel Pitch
Limiting Resolution
Energy Range
A/D Conversion
Data Acquisition Time

10 x 12 in
395 x 337 x 18 mm
325 x 260 mm
Amorphous Silicon with TFT
Cesium-Iodide (Cesium
3.15 kg (6.94 lbs)
2520 x 2008 pixels
127
Max. 3.9 lp/mm
40 - 150 kV
16 bits
<4.0 sec (wired)
<5.0 sec (wireless)

* Specifications subject to change without prior notice *
